High Performance Ultrasonic Precision Rangefinder DYP-A07

Short Description:


Product Detail

Product Specifications

Part Numbers

Documentation


The features of A07 module include centimeter-level resolution, a measuring range from 25cm to 800cm, a reflective structure, and various output options: PWM processing value output, UART automatic output, and UART controlled output.

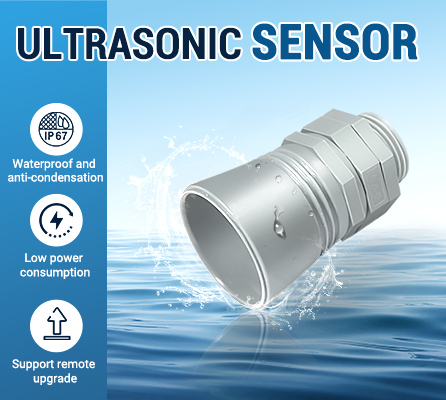

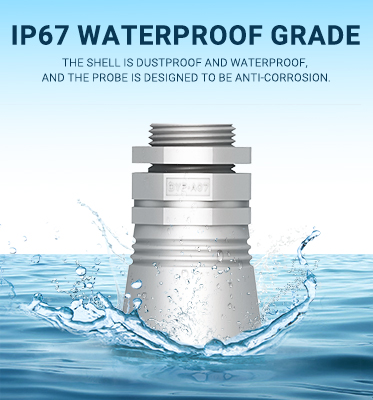

The A07 module is a sturdy ultrasonic sensor component module, the transducer is treated with anti-corrosion. The sensor uses a compact and sturdy PVC shell, meets the IP67 waterproof standard, and is matched with standard 3/4-inch PVC electrical pipe fittings.

In addition, A07 can provide almost noise-free distance readings by using a combination of real-time waveform feature analysis and noise suppression algorithms. This is true even in the presence of many different sources of acoustic or electrical noise.

Centimeter grade resolution
Internal temperature compensation, stable measurement from -15℃ to +60℃
40KHz ultrasonic sensor
RoHS compliant
Multiple output interface optional: PWM processing value, UART Auto, UART Controlled
25cm blind zone
800cm max measuring range
3.3-5.0V input voltage
Low power consumption design, static current<10uA, operating current<15mA
1cm accuracy
Compact size, light weight module
Designed for easy integration into your project or product
Operating temperature from -15°C to +60°C
IP67 enclosure rate
Recommended for

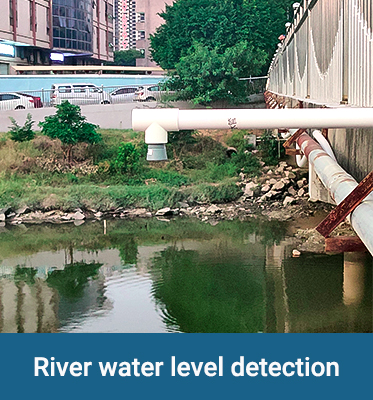

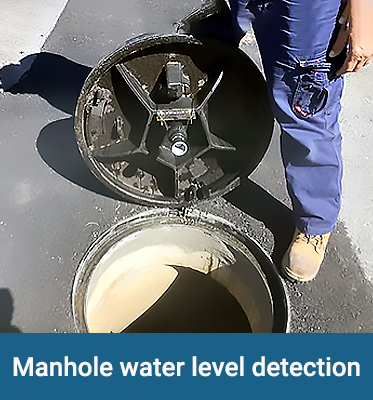

Sewer level monitoring

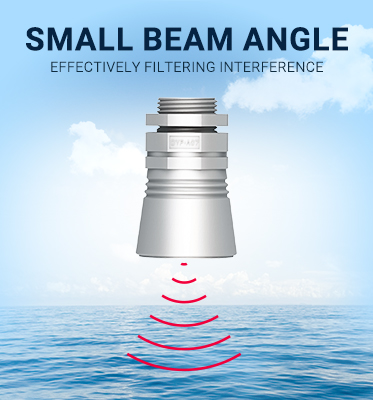

Narrow angle horizontal ranging
Intelligent detection system

 No.  Output interface  Model No.
 A07 Series  UART Auto DYP-A07NYUB-V1.0
 UART Controlled DYP-A07NYTB-V1.0
PWM Processing value output DYP-A07NYWB-V1.0
