Large-scale anti-condensation high-precision ultrasonic water level sensor DYP-A17

Short Description:

A17 Series ultrasonic sensor module designed with reflective structure, adopts high-performance processor and superior quanlity elements, Providing reliable quanlity and long life span, Ultrasonic probe adopts anti-water process design, effectively reduce the problem of probe condensation. IP67 protect suitable for poor condition. Build in high-precision distance sensing algorithm and power consumption procedure.


Product Detail

Product Specifications

Part Numbers

Documentation

The feature of A17 Series ultrasonic sensor include cm resolution, 25cm to 1000cm long measuring distance, reflective structure, and various connection type optional, which include PWM, UART Controlled, UART Automatic, RS485.

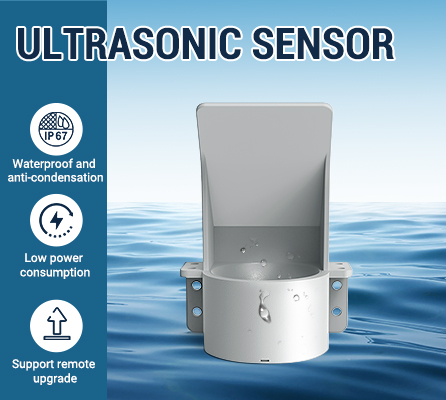

The A17 Series module is a strong ultrasonic sensor component, its transducer has corrosion resistant protection. The sensor is built in a compact and rugged nylon housing, which is matched with standard 3/4 inch PVC electrical pipe fittings and meets the IP67 waterproof standards.

The A17 module can output almost noise-free range readings by using a combination of real-time waveform feature analysis and noise suppression algorithms. It is the same performance even in the condition of many different acoustic or electrical noise sources.

The A17 sensor has fixed bracket and without fixed bracket version. its default is without fixed bracket, the bracket is an optional component. Please confirm the fixed bracket when placing an order. the fixed bracket is also suitable for A07 too.

1-CM Resolution
Built-in Automatic Temperature Compensation
Built-in Automatic correction Temperature diviation
Stable output from -15℃ to +60℃
40kHz ultrasonic sensor object ranging measurement capacity
CE RoHS compliant
Various connection type formats: UART Auto, UART Controlled, PWM, RS485, flexable interface capacity
Dead band 25cm
Max ranging measurement 1000cm
Working voltage 3.3-5.0Vdc,
Low power consumption design
Static current<10.0uA
Working current <15.0mA
Measurement accuracy:±(1+S*0.3%),S stands for measured distance
Small size, Light weight module

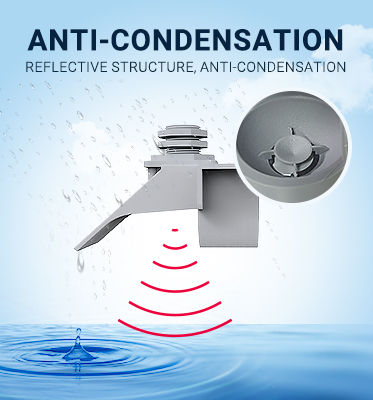

Anti-water process design, reduce the problem of probe condensation
The sensors are designed for easy integration in your project or product
Operating temperature -15°C to +60°C

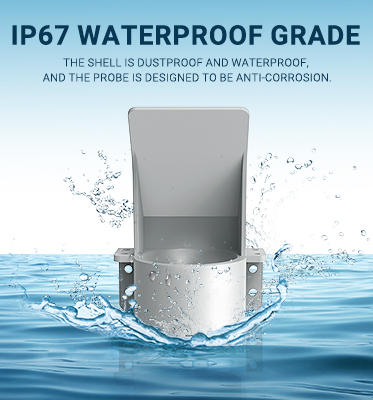

IP67 protection

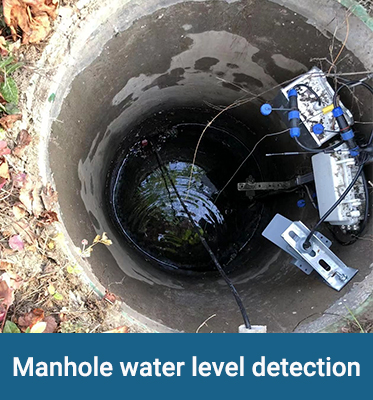

Recommend for sewer water level monitoring
Recommend for Narrow beam angle level measuring

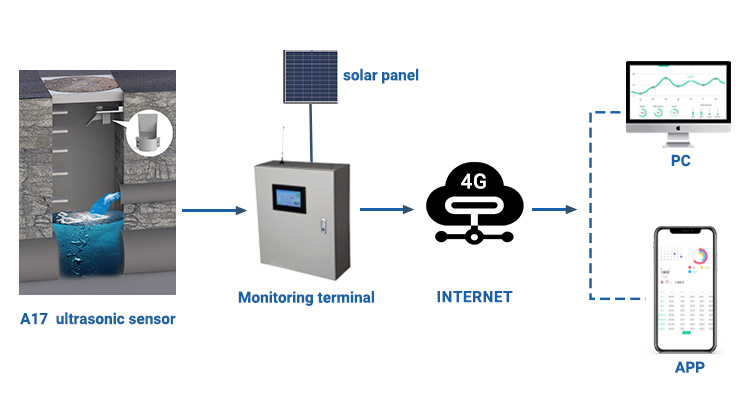

Recommend for smart detecting system
……

No. Application Connection type Model
A17 Series Sewer water level measurement mode UART Automatic DYP-A17NYUW-V1.0
UART Control DYP-A17NYTW-V1.0
PWM   DYP-A17NYWW-V1.0
RS485 DYP-A17NY4W-V1.0
