Narrow beam angle high accuracy ultrasonic range finder(DYP-A12)

Short Description:

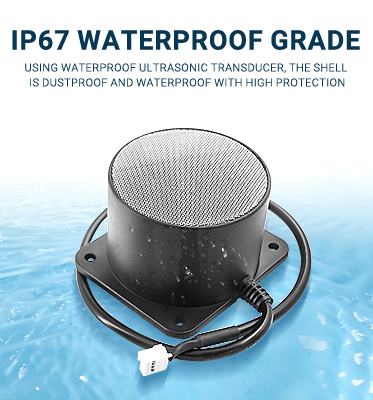

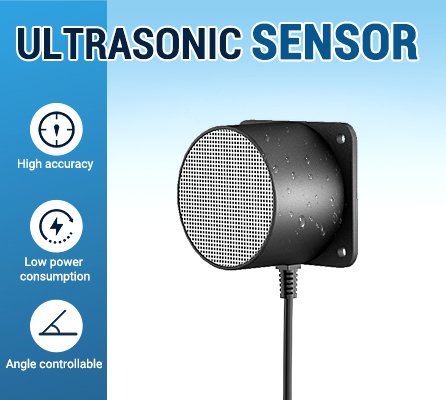

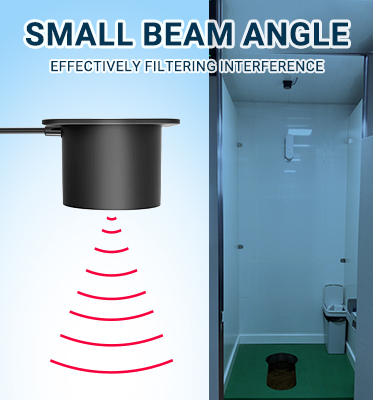

A12 series ultrasonic sensor module uses ultrasonic technology for ranging. Adopting waterproof transducer,IP67 suitable for harsh environments. Build in high-precision distance sensing algorithm and power consumption procedure. High ranging accuracy, low power , long distance and small angle .


Product Detail

Product Specifications

Part Numbers

Documentation

Features of the A06 module include millimeter resolution, 25cm to 500cm range, reflective construction and various output options: PWM pulse width output, UART controlled output, UART automatic output, switching output, RS485 output.

According to different characteristics and advantages, the module is divided into two series:



A12A series, mainly used for plane ranging;

A12B series, mainly used for human ranging.



The A12A series of modules are mainly used for plane distance measurement; it can perform targeted measurement on plane objects and can measure long distances, small angle, and high accuracy. The farthest measurable measuring range of a flat object is 500cm.

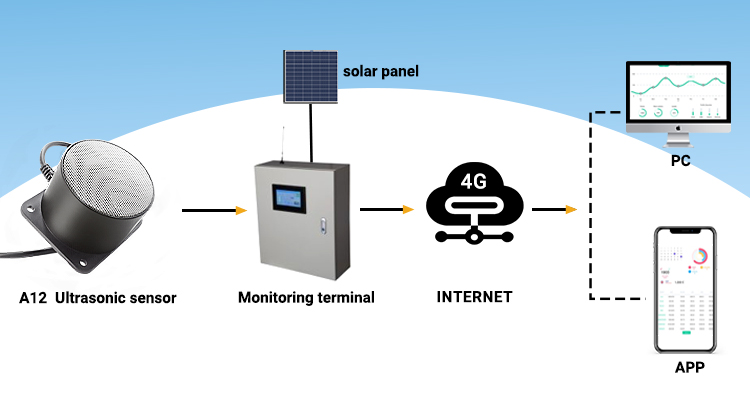

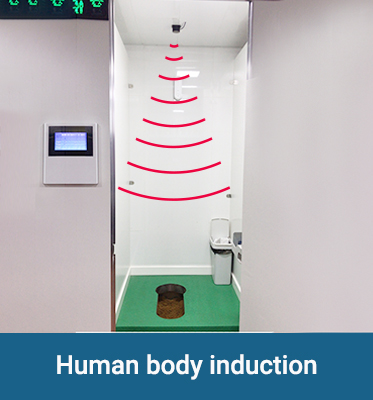

The A12A series of modules are mainly used for human body distance measurement; it is sensitive to human body detection, and the human target measurement is more stable, high stability of objects measured . It can measure the upper body of the human body stably within 350cm. Measuring the farthest measuring range of flat objects
is 500cm.

mm level resolution
On-board temperature compensation function, automatic correction of temperature deviation, stable ranging from -15°C to +60°C
40kHz ultrasonic sensor measures the distance to the object
RoHS is approved.
Multiple output interfaces optional: PWM , UART , Switch, RS485. Dead band 25cm
Max range 500cm
Working voltage is 3.3-24V
Low power consumption design, standby current ≤5uAWorking current ≤8mA, ≤15mA (RS485)
Measurement accuracy of plane objects: ±(1+S*0.3%)cm, S represent the measurement distance
Small and light module
Designed for easy integration into your project or product

Recommend for Waste bin fill level
Recommend for smart parking system
Recommend for slow moving targets Recommend for robot obstacle avoidance and automatic control

No. Application Main Spec. Output interface Model No.
A12A Series Flat object Plane object range25cm~500cm;Small angle UART auto DYP-A12ANYUW-V1.0
UART controlled DYP-A12ANYTW-V1.0
PWM  DYP-A12ANYMW-V1.0
Switch DYP-A12ANYGDW-V1.0
RS485 DYP-A12ANY4W-V1.0
A12B Series People detection Plane object range25cm~500cm;Stable measurement within 350cm
Measure the upper body of the human body
UART auto DYP-A12BNYUW-V1.0
UART controlled DYP-A12BNYTW-V1.0
PWM  DYP-A12BNYMW-V1.0
Switch DYP-A12BNYGDW-V1.0
RS485 DYP-A12BNY4W-V1.0
