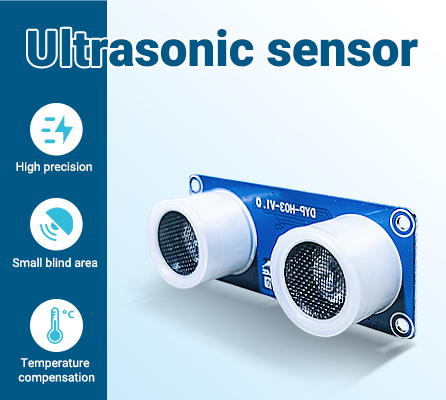

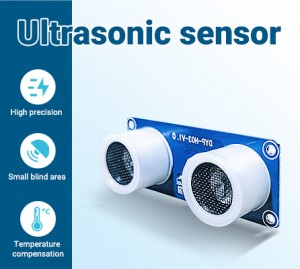

Small blind zone ultrasonic range finder (DYP-H03)

Short Description:

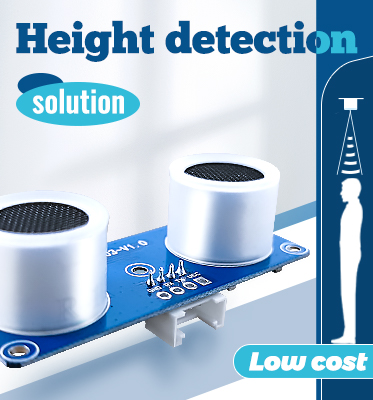

The H03 module is a high-performance, high-reliability commercial-grade functional module specially developed for height measurement.

Product Detail

Product Specifications

Part Numbers


Features of the H03 module include millimeter resolution, 25cm to 200cm range, reflective construction and UART controlled output.

H03 module measures the head stability distance of 10~120cm. Plus, Firmware filtering for excellent noise tolerance and clutter rejection

mm level resolution
On-board temperature compensation function, automatic correction of temperature deviation, stable ranging from -15°C to +60°C
40kHz ultrasonic sensor measure distance to objects
ROHS compliant
Output interfaces:UART controlled .
3cm dead band
Max measuring range is 250cm
Low 10.0mA average current requirement
Low power consumption design, average working current ≤10mA
Accuracy of meauring flat objects:±(1+S* 0.3%),S as measuring range.
Small, light weight module
Designed for easy integrated into your project and product

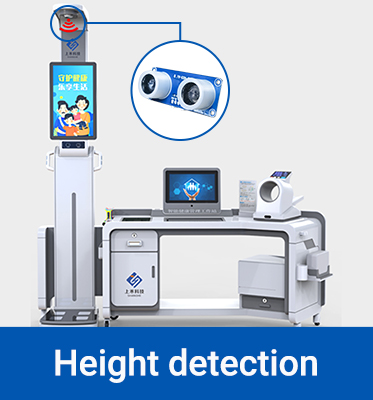

Recommend for intelligent altimeter

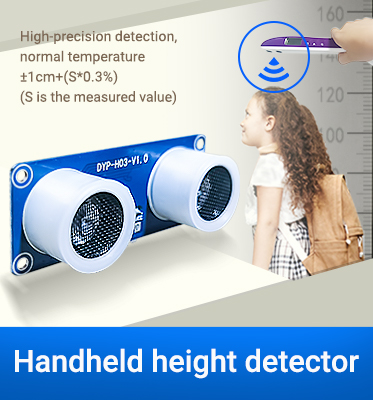

Recommend for Hand-held altimeter

No. Output interface Model No.
A20 series UART controlled DYP-H03TRT-V1.0
