Capacitive high-precision ultrasonic range finder (DYP-H01)

Short Description:

The H01 module is a high-performance, high-reliability commercial-grade functional module specially developed for height measurement.


Product Detail

Product Specifications

Part Numbers

Documentation

Product Description

Features of the H01 module include millimeter resolution, 10cm to 800cm range, reflective construction and severaloutput types: UART output ,PWM automatic output,PWM controlled output,RS485 output.
The product can accurately detect the Distance to a flat object within 800cm,the human body within the range of 100mm to 3000mm.

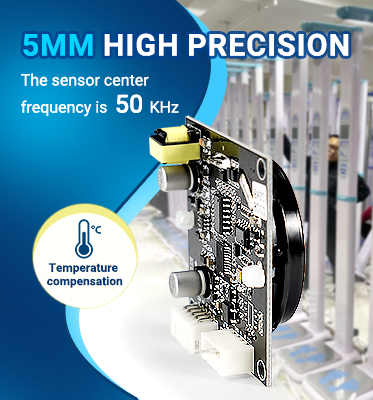

·mm level resolution

·On-board temperature compensation function, automatic correction of temperature deviation, stable ranging from -10°C to +50°C

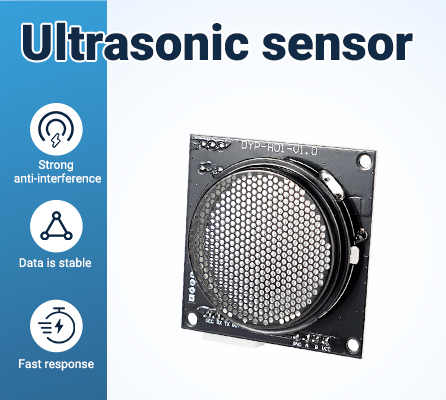

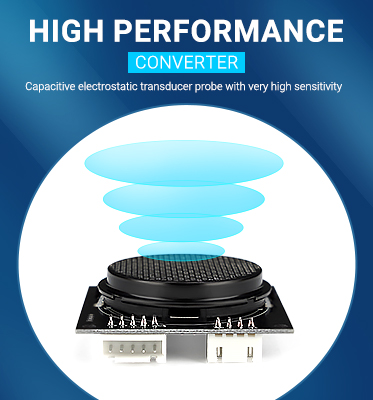

·40kHz ultrasonic sensor measure distance to objects

·CE ROHS compliant

·Multiple output interfaces optional:UART,PWM auto,PWM controlled,RS485

·10cm dead band,objects closer than 10cm range as 10cm

·Max measuring range is 800cm

·3.3-5.0V 5.0-12.0V input voltage ·Working current ≤25mA (RS485 output)

·Accuracy of meauring flat objects:±(1+S* 0.3%),S as measuring range.

·Small, light weight module

·Designed for easy integrated into your project and product

·Operational temperature -10°C to +50°C

Recommend for robot obstacle avoidance and automatic control.

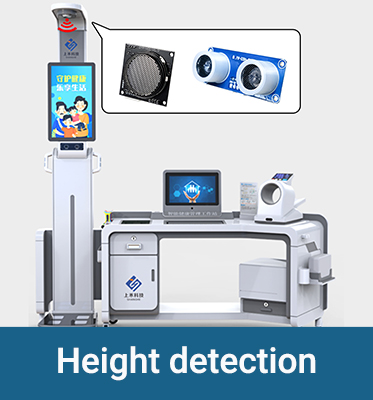

Recommend for intelligent altimeter

Recommend for slow moving targets

No. Output interface Model No.
H01 Series UART DYP-H01IOU-V1.0
PWM processing value DYP-H01IOW-V1.0
PWM DYP-H01IOM-V1.0
RS485 DYP-H01IO4-V1.0
